IOT lesson 2-Tinker CAD

The second lesson of the robotics course introduced us to a coding platform called TinkerCAD. This platform lets us make 3-D projects and circuits. The first project included the Gates chips. There are four main chips called AND, NAND, XOR, and OR. The circuits usually stay the same except for the diagram in picture 2. The diagram shows the input and output of each pin, and picture 3 shows the results that should occur (it’s called a truth table). The second project was the "7473 JK Flip Flop IC." This project shows how the memories in an SSD file are controlled.

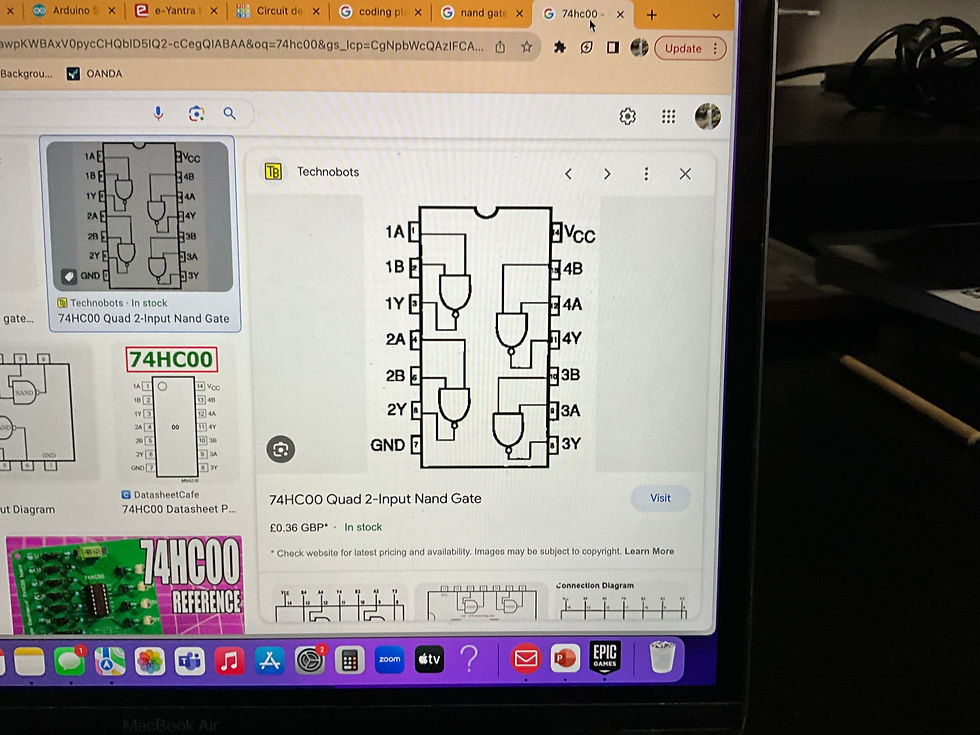

Picture 1:

Picture 2:

Picture 3:

Picture 4:
